阀体/Valve body:CF8
连接管/Connecting pipe:304
公称压力/Nominal pressure:4.0MPa
设计温度/Design temperature:-196℃~+80℃
适用介质/Applicable medium:LNG 、LO2 、LN2 、LAr

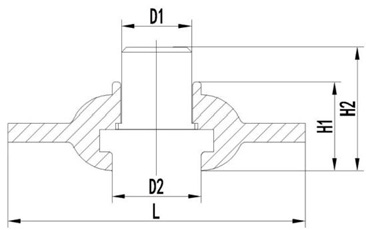

| 型号MODEL | 主要外形和连接尺寸/Main form and the connection size(mm) | ||||
| D1 | D2 | L | H1 | H2 | |
| DCK-40 | φ46.7 | φ61 | 200 | 60 | 84 |
